Name: Color Coated Aluminum Coil
Brand: AluAone
Availability: InStock

Product Overview

Continuous Coil Coating
for Superior Performance

AluAone Color Coated Aluminum Coil is a roller coated product manufactured through a continuous coil coating process. The substrate is 100% aluminum, pre-treated and coated with Kynar 500 PVDF, FEVE, or Polyester coating in 2 or 3 layers — delivering high durability and super weather resistance for demanding architectural and industrial applications.

The continuous coil coating process ensures consistent, uniform coating thickness across the entire coil length — impossible to achieve with spray or brush application. This translates to predictable color, gloss, and performance across your entire project.

Roller coated — consistent, uniform coating across entire coil

Kynar 500 PVDF / FEVE / Polyester coating options

AAMA 2605 certified with ΔE≤1.00 color consistency (Intertek verified)

100% recyclable — Cost effective Index: A++

15/20 year PVDF warranty backed by project warranty certificates

Product Structure (Cross Section)

Protective Film

if needed

Clear Coating

protection

PVDF / FEVE / PE Coating

top coat

Primer

adhesion

Chemical Conversion

pre-treat

Aluminum Sheet

substrate

Chemical Conversion

pre-treat

Rear Coating

if needed

2 or 3 layers of coating applied via continuous roller coating line

Technical Data

Specifications

Full range of alloys, tempers, and dimensions available. Custom specifications on request.

Property	Value
Alloy	A1100 / 3003 / 3004 / 3005 / 3105 / 5005
Temper	H24 / H14
Thickness	0.20 – 1.30 mm
Available Widths	400 / 600 / 1240 / 1270 / 1520 / 1590 / 2020 mm
Weight per Coil	As requested
Coating System	Kynar 500 PVDF / FEVE / Polyester
Coating Layers	2 or 3 layers ( primer + top coat + clear coat)
Coating Process	Continuous roller coating
Color Consistency	ΔE≤1.00 average (Intertek verified)
Certification	AAMA 2605 High-Performance Exterior
Warranty	15-year (2-layer PVDF) / 20-year (3-layer PVDF)
Recyclability	100% recyclable aluminum

Coating Systems

Three Coating Options for
Every Application

Choose the right coating system for your climate, budget, and performance requirements.

Premium

PVDF (Kynar 500)

The gold standard for exterior architectural applications. Based on 70% Kynar 500 fluoropolymer resin from Arkema, PVDF coating delivers unmatched UV resistance, color retention, and chalk resistance for decades of outdoor exposure.

Warranty: 15-year (2-layer) / 20-year (3-layer) Certification: AAMA 2605 High-Performance Best For: Exterior facades, standing seam roofing, curtain walls, high-value architectural projects in any climate Paint Suppliers: PPG, AkzoNobel

High-Performance

FEVE Fluoropolymer

A fluoroethylene vinyl ether coating offering comparable exterior durability to PVDF. FEVE provides excellent gloss retention and weatherability, with the added benefit of superior color vibrancy and broader color matching capabilities.

Warranty: 15-20 years (application dependent) Performance: Comparable to PVDF in exterior durability Best For: Exterior cladding, roofing, and projects requiring vibrant metallic or special-effect finishes Advantage: Better color vibrancy than PVDF

Cost-Effective

Polyester

A cost-effective coating solution ideal for interior applications, mild climates, and projects where budget optimization is priority. Polyester offers good color range and surface quality at a significantly lower cost point.

Warranty: 5-10 years (application dependent) Cost Index: Most economical option Best For: Interior ceilings, wall panels, insulated sandwich panels, gutters in mild climates, signage Advantage: Best price-to-performance ratio

Applications

Wide Range of Applications

AluAone color coated aluminum coil is used across residential, commercial, and industrial construction.

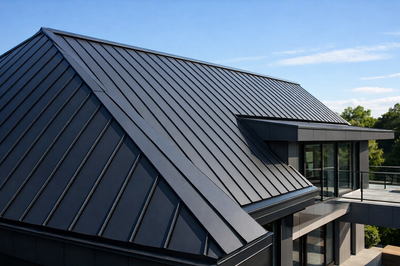

Standing Seam Roofing

PVDF coated coil roll-formed into standing seam profiles for premium architectural roofing.

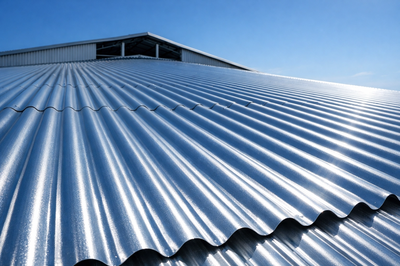

Corrugated Roofing

High-durability corrugated profiles for commercial and residential roofing in all climates.

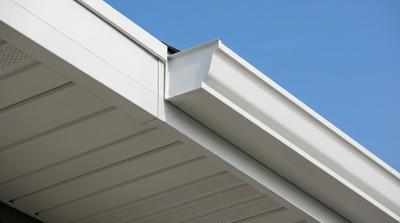

Gutters, Fascia, Soffit

Pre-painted coil for rain gutters, fascia boards, and soffit panels with lasting color finish.

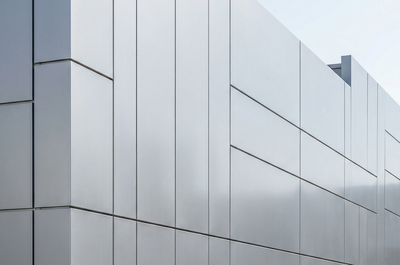

Wall Cladding / Facades

Flat or profiled wall panels for exterior building envelopes and architectural facades.

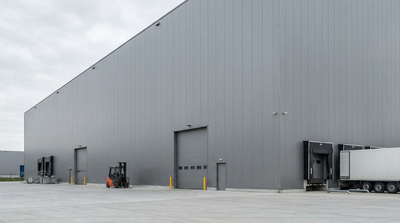

Insulated Sandwich Panels

Face skin for PIR/PUR/EPS insulated panels used in cold rooms, warehouses, and clean rooms.

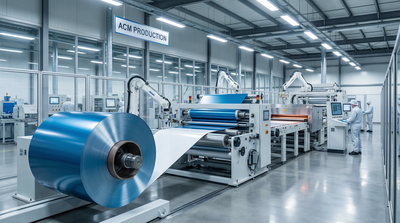

ACM Manufacturing Input

Pre-painted aluminum coil as top/bottom skin for aluminum composite material production.

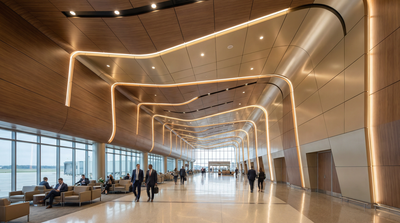

Interior Ceiling & Walls

Polyester or FEVE coated coil for interior ceiling tiles, wall linings, and partition panels.

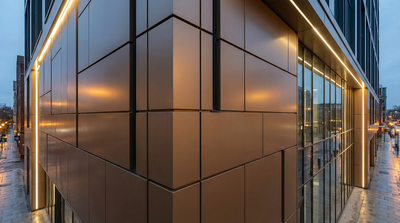

Rain Screen Cladding

Ventilated rain screen systems using pre-painted aluminum coil for moisture management and aesthetics.

Color & Finish

Comprehensive Color Range

From standard RAL colors to custom spectra effects — every finish digitally archived for precise reorder matching.

Metallic Colors

Solid Colors

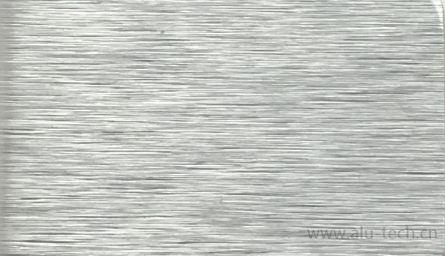

Special Finishes

Custom Color Matching Available — Bring any RAL, Pantone, NCS code or physical sample. Our digital color archiving system ensures precise matching and reorder consistency across batches and years.

Quality & Certifications

Tested & Certified

Every coil passes multi-stage quality control. Coatings from PPG and AkzoNobel, verified by Intertek accredited laboratories.

ISO 9001:2015

Quality Management System

ISO 14001:2015

Environmental Management

ISO 45001:2018

Health & Safety

AAMA 2605

High-Performance Exterior Coating

Intertek Tested

ΔE≤1.00 Color Consistency

PPG · AkzoNobel

Tier-1 Paint Partners

Request a Quote

Get a Quote for
Color Coated Aluminum Coil

Tell us your alloy, thickness, width, coating system, and color requirements. Our team will respond within 12 hours with pricing, lead time, and technical recommendations.

Request a Quote Email: info@AluAone.com

Or email us directly: info@AluAone.com — David Jin, Response within 12 hours
